willkommen bei HELI-TOM
welcome at heli-TOM

So entsteht der Kopf in seinen Einzelteilen

This way the rotor head was build:

Zuerst ein Drehteil:

First a turned part:

IMGP0039

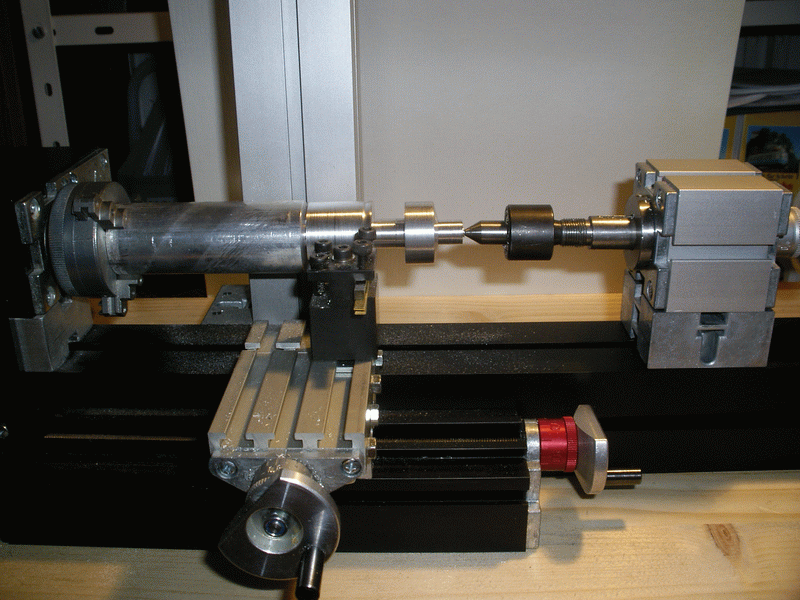

Roh gedreht auf der UNIMAT 1 ML von Cool Tool

Machined was this part on an UNIMAT 1 ML by Cool Tool

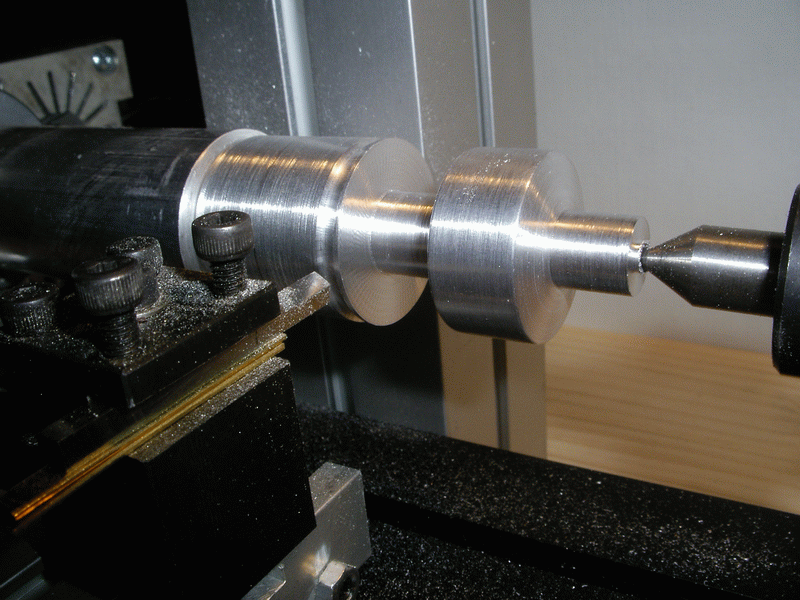

Aus einem Rohteil mit 30mm Durchmesser werden zunächst die Einzelteile “am Stück” mit geringen Zugaben gedreht...

From a row material of 1,2” diameter the parts are machined as one including some add ones ...

IMGP0041

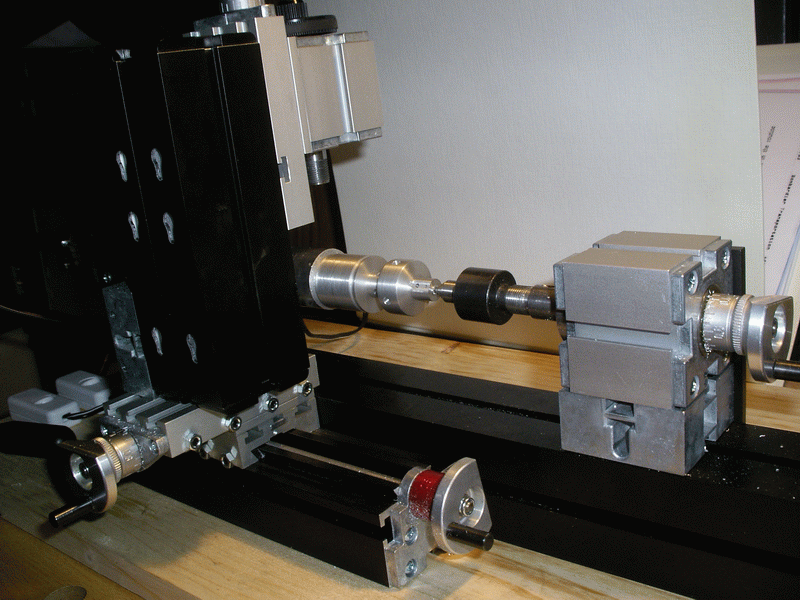

Mit der “aufgerüsteten” UNIMAT werden die notwendigen radialen Bohrungen für Befestigungen und Blatthalter hergestellt:
Using the “upgraded” UNIMAT all necessary Drills for fixing and mounting of blade graps are prepared:

IMGP0044

Das kleine Maschinchen macht eine ganz gute Figur bei der Herstellung, wenn man den Span beim Drehen in Grenzen hält. Bei geringem Vorschub ist auch eine geringe Rauhtiefe erzielbar. Das fordert aber Geduld und eine ruhige Hand, sofern man nicht über die notwendigen Module zur CNC- Steuerung verfügt, doch bei mir ist das noch nicht so weit!

This little tooly is in very good shape for this task, but the swarf must be limited during mashining. If the feed motion is kept small, the depth of roughness can be shrinked. But this requires a slow hand if no CNC equipment is available as this is in my case! May be later.

IMGP0049

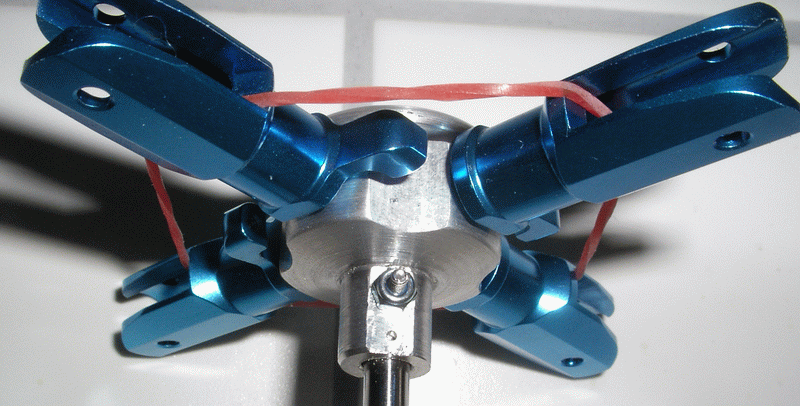

Der neue Kopf passt spielfrei auf die originale Hauptrotorwelle ...

The new head fits to the original main shaft...

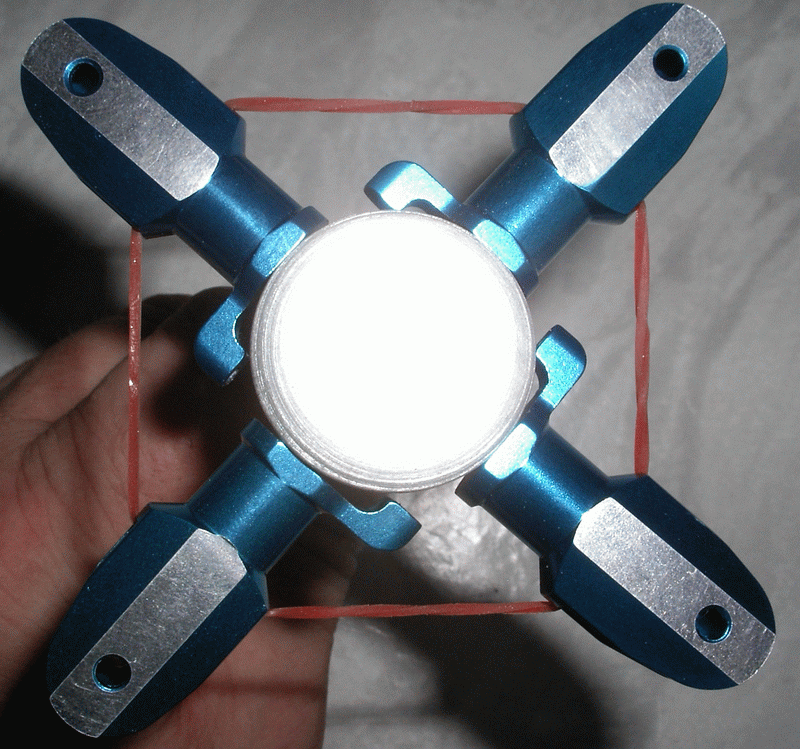

 ... als nächstes müssen die Anlenkhebel der Blatthalter modifiziert werden ...

... the next step will be the modification of blade grap’s control rods ...

IMGP0050
